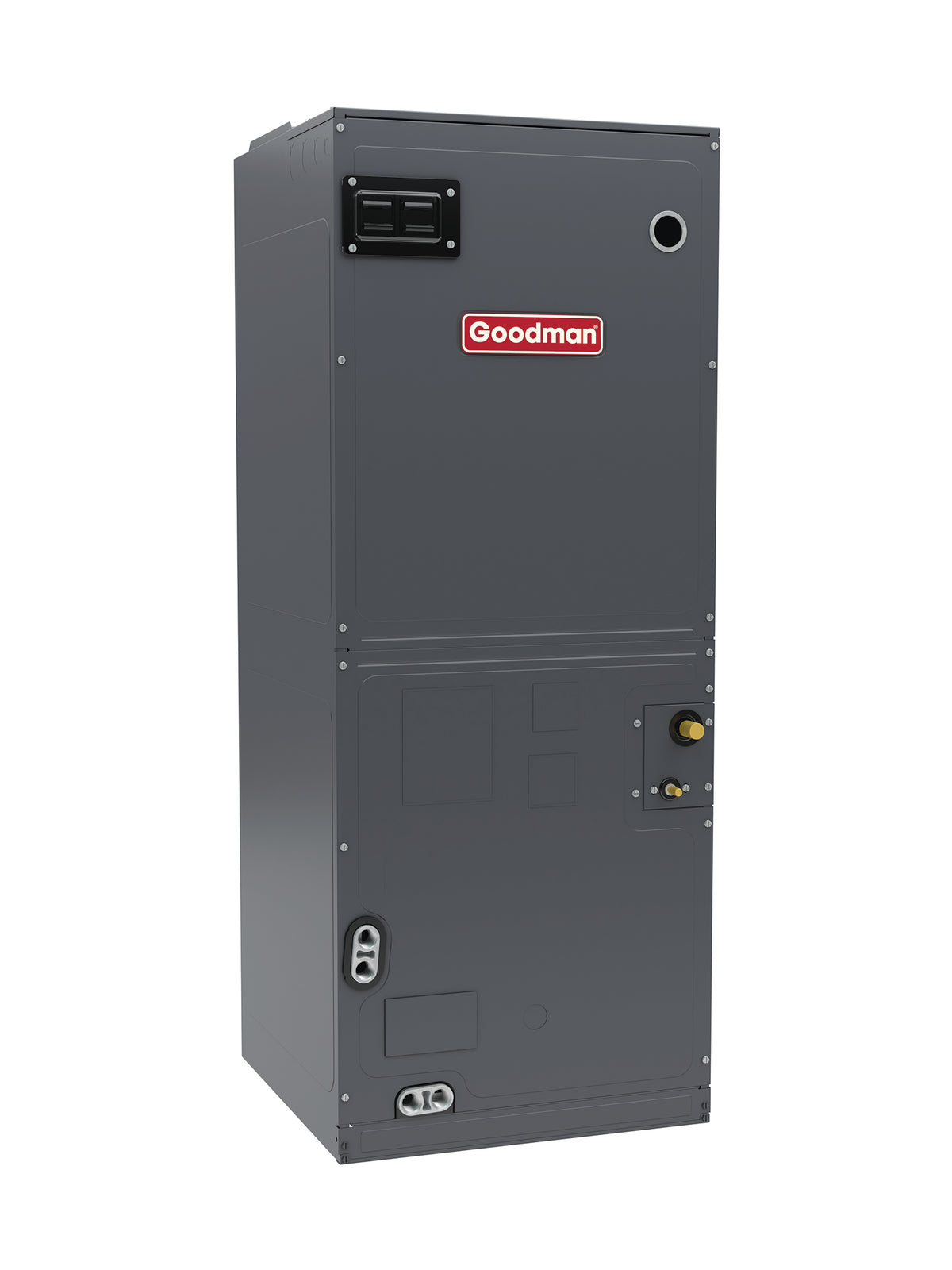

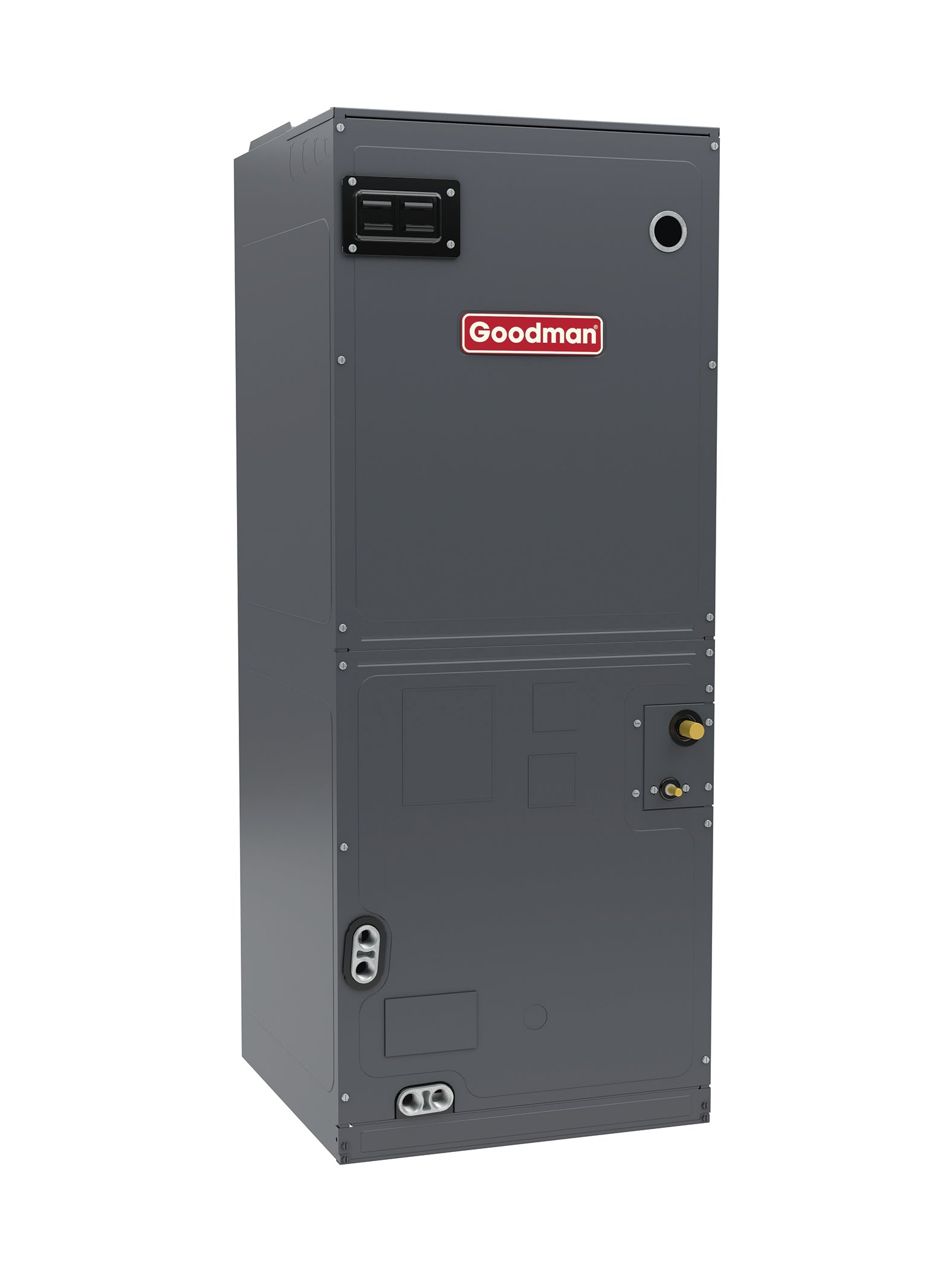

Inverter compatible Air Handler Ducted Multi-position Air Handler, Variable Speed Motor, 5 Ton, 24-1/2 in Cabinet with EEV Expansion, Comfort Net Compatible

• Refrigerant Type: R-32
• Unit Height: 58 in
• Unit Width: 24-1/2 in
• Communication Feature Type: Comfort Net Compatible
• Cooling Capacity Nominal: 60000 Btu/H
• Max Overcurrent Protection: 15/15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Variable Speed
• Unit Weight: 167 lb
• Tonnage: 5
• Coil Application: Upflow/Downflow/Horizontal
• Unit Depth: 21 in

DISCRIPTION

• Product Benefits:
• Electronic Expansion Valve (EEV) for cooling and heat pump applications
• 7 mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified
• ETL listed
• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• 3 kW – 25 kW electric heater kits
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Deca BDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Cabinet Features:
• • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
• tested in accordance with ASHRAE standard 193
• • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
• tested in accordance with ASHRAE standard 193
• • 3 kW – 25 kW electric heater kits
